Password recovery on a Cisco 1941 router

Prereqs

  • a PC (BIOS/UEFI) running Linux Mint 21
    • minicom terminal emulation software
  • a serial console cable
  • a Cisco 1941 router
    • a working IOS, but inaccessible (forgotten console and/or enable password)

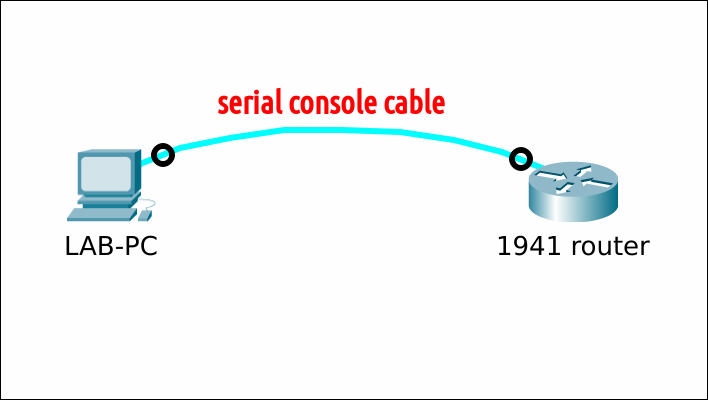

Setup

Situation

The "console password" and "enable password" (Privileged EXEC mode) are - amongst other router configuration settings - stored in startup-config (NVRAM). Recovery of a lost password is only useful if you have a inacessible (but working) IOS. If not, you have a bigger problem and have to (re)install an IOS operating system first.

No access to the console.

1
2
3
4
5
6
7
...
User Access Verification

Password:           <--- enter wrong password
Password:           <--- enter wrong password
Password:           <--- enter wrong password
% Bad passwords

Access to the console, but no access to privileged exec mode.

1
2
3
4
5
6
7
Router>enable
Password:           <--- enter wrong password
Password:           <--- enter wrong password
Password:           <--- enter wrong password
% Bad secrets

Router>

ROMMON

Boot the router in ROMMON-mode using the break sequence mechanism. To my knowledge, there is no "password recovery mechanism" like on a Cisco 2960 switch.

The configuration register is typically set to 0x2102. Let's change it to 0x2142. This will bypass the startup-configuration file.

1
2
3
4
5
rommon 1 > confreg 0x2142


You must reset or power cycle for new config to take effect
rommon 2 >

Reload the router.

1
2
3
4
rommon 3 > reset

System Bootstrap, Version 15.0(1r)M16, RELEASE SOFTWARE (fc1)
...

You are greeted with the initial configuration dialog. Answer "no" and press Enter. Go to privileged exec mode.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
--- System Configuration Dialog ---

Would you like to enter the initial configuration dialog? [yes/no]: no


Press RETURN to get started!
...
...
Router>enable
Router#

Optional: if you do not want to keep the startup-configuration, delete it now. Else, skip this step.

1
2
3
4
5
Router#erase startup-config
Erasing the nvram filesystem will remove all configuration files! Continue? [confirm]
[OK]
Erase of nvram: complete
Router#

Optional: if you do want to keep the startup-configuration, copy it to memory. Else, skip this step.

1
2
3
4
5
Router#copy startup-config running-config
Destination filename [running-config]?
1170 bytes copied in 0.132 secs (8864 bytes/sec)

Router#

Configure the new privileged exec mode and console passwords. Change the configuration register back to 0x2102. Save the running-configuration and reload.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
Router#conf t
Router(config)#enable secret cisco-EN-pass

Router(config)#line console 0
Router(config-line)#password cisco-CON-pass
Router(config-line)#login
Router(config-line)#exit

Router(config)#config-register 0x2102
Router(config)#end

Router#copy running-config startup-config
Destination filename [startup-config]?
Building configuration...
[OK]

Router#reload
Proceed with reload? [confirm]

*Apr  4 12:22:50.391: %SYS-5-RELOAD: Reload requested by console. Reload Reason: Reload Command.

Login using the new console password. Enter privileged exec mode using the new "enable" password.

1
2
3
4
5
6
7
8
9
User Access Verification

Password:                                               ---> enter "cisco-CON-pass"

Router>

Router>enable
Password:                                               ---> enter "cisco-EN-pass"
Router#
