Configure VMs
NAT configuration

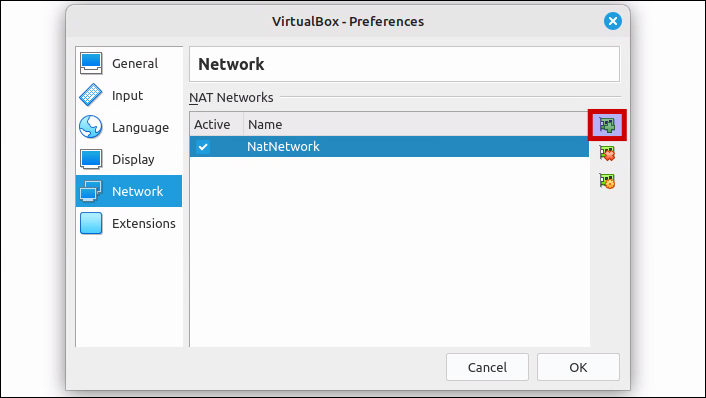

Select "File -> Preferences -> Network". Click on the + to create a NAT Network.

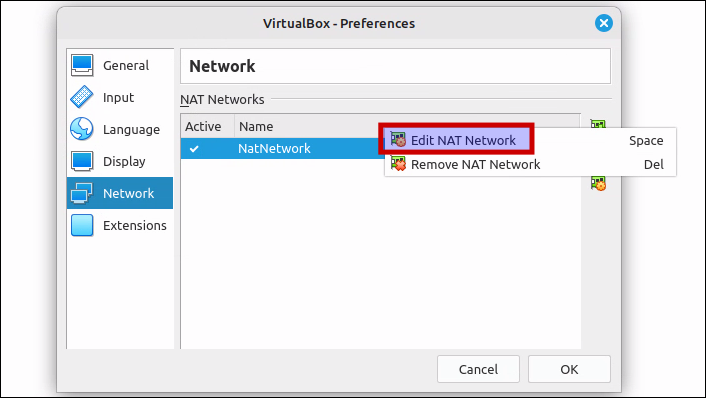

Right-click -> "Edit NAT Network".

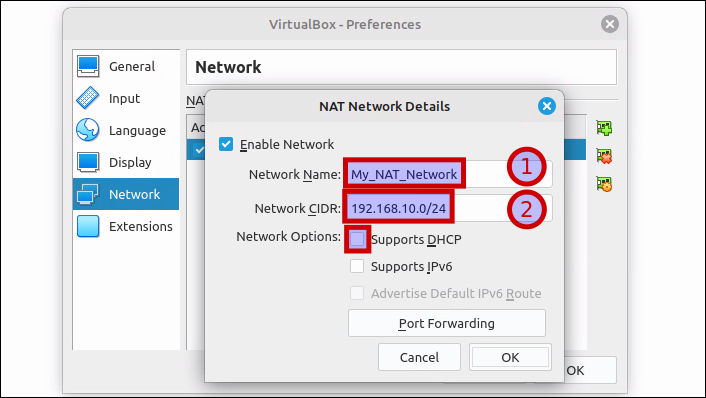

- Change the "Network Name" to "My_NAT_Network".
- Change the "Network CIDR" to "192.168.10.0/24" and remove the check "Supports DHCP". Close all screens with "OK".
NAT network and shared folder
Configure following steps on VM06, VM07, VM16, VM17 and VM18. The example is for VM06.

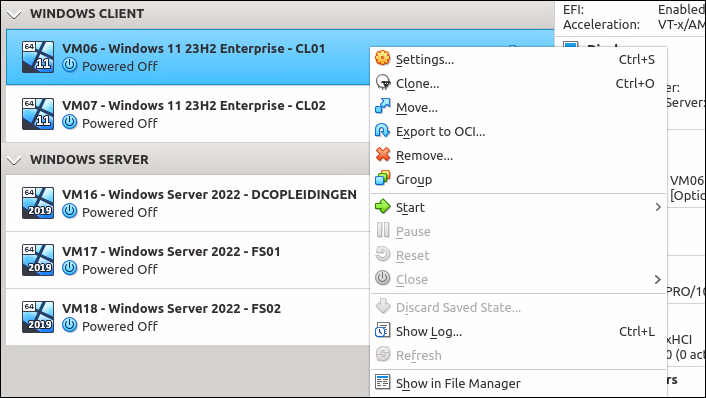

Select VM06. Right-click -> Settings.

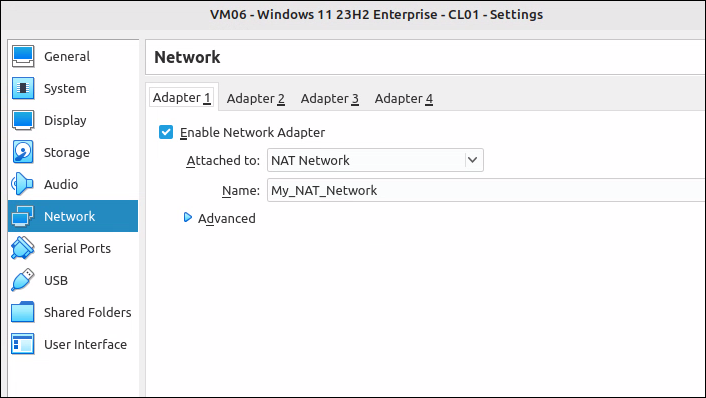

Change "Attached to" -> "NAT Network". Verify that "Name" is "My_NAT_Network".

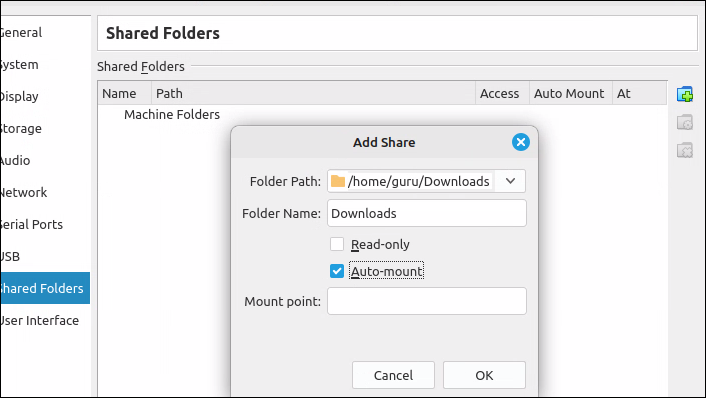

Add a shared folder: click on the "plus-sign" and configure according to the screenshot.
